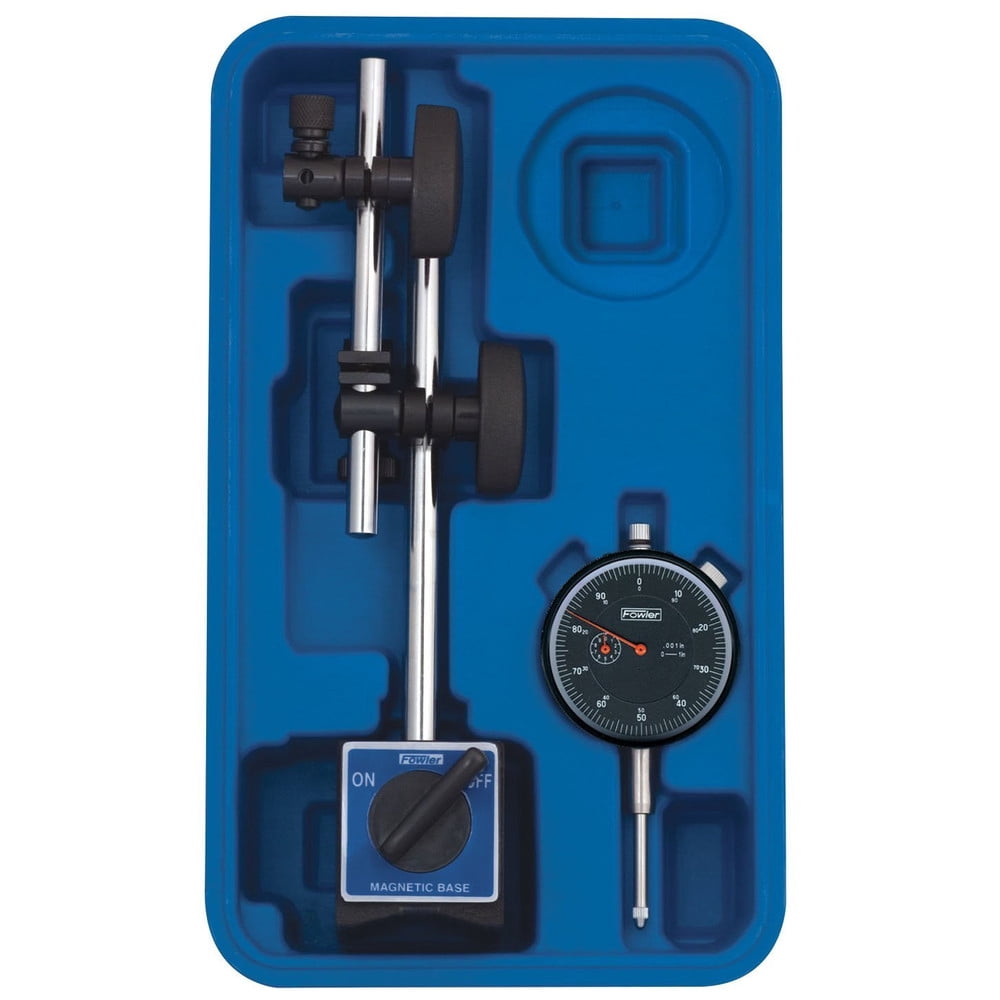

Fowler 72-520-199 Magnetic Base & Black Face Indicator with Fine Adjust

<ul><li>Fine adjustment magnetic base</li><li>On/Off lever release magnet</li><li>V-base for placing on round surfaces</li><li>Gauge has constant spring pressure for repeatability</li><li>FastFit measuring heads for rapid measurement</li><li>3-point contact system for the detection of lobing or triangular form error</li><li>Ceramic contact points provide high durability and stability with regard to thermal expansion</li></ul><br><br>

The Fowler 54-565-233 High-Accuracy Ultima Bore Gauging System has a measurement range of 7.878 to 8.27 inch and is accurate to + or - 0.00006 inch. Resolution is 0.00001 inch and the measuring depth is 3.15 inch. The gauge has constant spring pressure for repeatability and Bower's FastFit measuring heads for rapid measurement. It uses a three-point contact system for the detection of lobing or triangular form error, and ceramic contact points provide high durability and stability with regard to thermal expansion. The Ultima system requires connection to a Sylvac or multiplexer display unit. This product has 1 year warranty offered by Fowler High Precision. If you experience any problem, contact Fowler directly for warranty claims. Fine adjustment magnetic base. On/Off lever release magnet. V-base for placing on round surfaces. Gauge has constant spring pressure for repeatability. FastFit measuring heads for rapid measurement. 3-point contact system for the detection of lobing or triangular form error. Ceramic contact points provide high durability and stability with regard to thermal expansion.

Includes

• Magnetic Base & Black Face Indicator with Fine Adjust - 72-520-199

Specifications

• Base Dimensions: 2 in. x 2-11/32 in. x 1-13/16 in.
• Continuous Reading: 0 - 100
• Graduation: .001 in.
• Measurement Range: 0 in. - 1 in.
• Pull Capacity: 85 lbs.

Brand	Fowler
Vehicle fitment type	Universal
Features	Magnetic Base
Model	72520199
Items included	Magnetic Base & Black Face Indicator with Fine Adjust
Has written warranty	No
Extra battery included	N
Batteries incl	N
Assembled product height	2.6 in
Weight	3.85 lb
Color	Black
